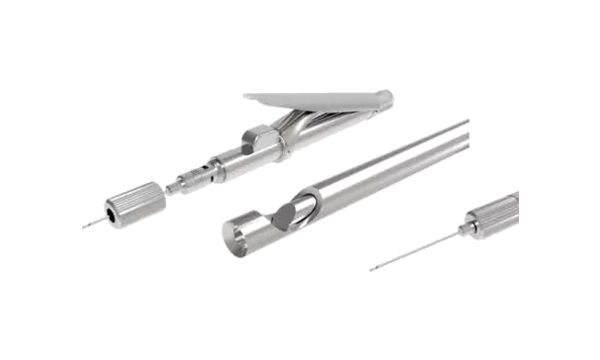

MR&R INTRODUCTION
In order to cope with some special cases of root canal treatment, dental tools manufacturer NIC Dental has introduced the MR&R System. The MR&R System was designed and developed on the basis of two national patents. It can be used to remove broken files in root canal and deliver MTA or other biomaterials.
Root canal file breakage can occur due to factors like complex canal anatomy, improper use of files, manufacturing defects, or inadequate knowledge. Broken endodontic files can block the canal, making cleaning difficult and affecting the prognosis of the tooth. Leaving the broken endo file unaddressed can lead to discomfort and increase the risk of treatment failure.
This is where our MR&R System comes into play. It is effective in removing broken files left in the root canal, handling perforation repair in endodontics, etc. It improves the success rate of treatment and patient comfort.
-
01. Endo perforation repairingIn the course of root canal treatment, the perforation of the pulp floor or the perforation in the root canal wall caused by operation mishaps can be repaired by using the MR&R system to deliver MTA and other biological materials. This way, the endodontic perforation can be repaired, and the teeth can be preserved and function well.
-
02. Pulp CappingClinical capping pulp syndrome refers to conservative treatment. The system will use MR&R MTA and other biological materials delivered to the exposed pulp. Pulp tissue often heals, and pulp can be saved without further endodontic treatment.
-
03. Preparation of apical barrierThe teeth with root canal barrier pasty were selected. The MTA and other bio-materials were filled to the tip with transport to prepare a permanent apical barrier, and then the root canal filling was completed.
-
04. Retrieve the broken instrumentAfter evaluating the position of the broken file in the root canal, which is suitable for removal, the MR&R system can be used to remove the broken instrument in the root canal with less dentin sacrifice.
practice makes perfect
01 NITI PATH DRILLS
High-quality NiTi material with excellent fatigue resistance and moderate pre-bending.
Establish a good pathway. According to the calculated diameter size of the separation instrument section. Select the appropriate sizes, generally use at least size 80# and above.
Sizes：60#, 70#, 80#, 90#, 110#
Rotation direction: clockwise continuous rotation
speed: 300-350rpm / min
Torque: 2.0-3.0N.cm
Establish a good pathway. According to the calculated diameter size of the separation instrument section. Select the appropriate sizes, generally use at least size 80# and above.
Sizes：60#, 70#, 80#, 90#, 110#
Rotation direction: clockwise continuous rotation
speed: 300-350rpm / min
Torque: 2.0-3.0N.cm
02 NITI STAGE PATH BUR
High-quality NiTi material with a smooth interface and two cutting edges at the end;
The shape of the root canal at the end of the section of the separated instrument is trimmed to prepare for the next step of circumcision. Corresponding to NiTi Path Drills #80, #90, #110
Sizes：80#, 90#, 110#
Sizes Choose： Using the same size with NiTi path drills
Rotation: counterclockwise continuous rotation
Speed: 350-450rpm/min
Sizes：80#, 90#, 110#
Sizes Choose： Using the same size with NiTi path drills
Rotation: counterclockwise continuous rotation
Speed: 350-450rpm/min

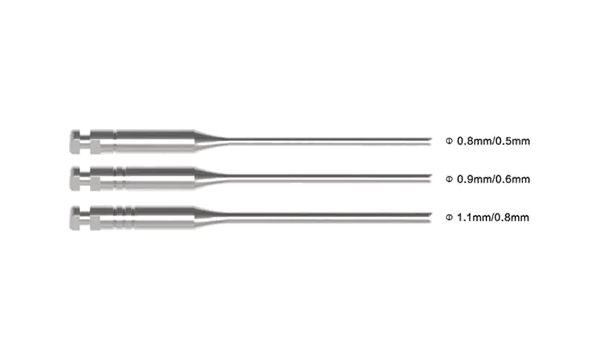

03 MICRO-TREPAN
Trepan No. 1 0.8mm/0.5mm
Trepan No. 2 0.9mm/0.6mm
Trepan No. 3 1.1mm/0.8mm Made of high-quality stainless steel, featuring a smooth interface, the end of the trephine drill is 5mm tubular, with two cutting edges;
the separation devices get exposed to 0.8-1.0mm by circumferential cutting, thus being prepared for the further step of circumferential cutting.
Trephine drills have the corresponding sizing to the NiTi stage path burs 80#, 90#, and 110#, Please keep the consistent sizes when using platform drills to trephine drills
Rotation: counterclockwise continuous rotation
Speed: 350-450rpm/min
Trepan No. 2 0.9mm/0.6mm
Trepan No. 3 1.1mm/0.8mm Made of high-quality stainless steel, featuring a smooth interface, the end of the trephine drill is 5mm tubular, with two cutting edges;
the separation devices get exposed to 0.8-1.0mm by circumferential cutting, thus being prepared for the further step of circumferential cutting.
Trephine drills have the corresponding sizing to the NiTi stage path burs 80#, 90#, and 110#, Please keep the consistent sizes when using platform drills to trephine drills
Rotation: counterclockwise continuous rotation
Speed: 350-450rpm/min

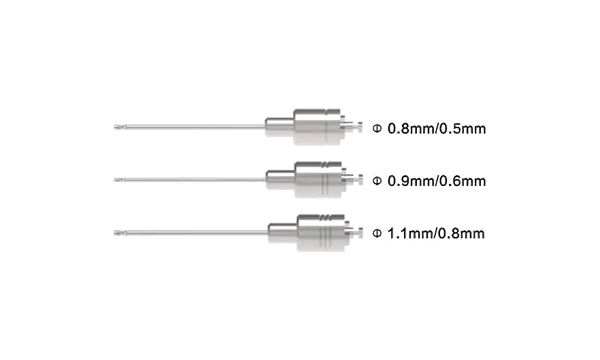

04 MICRO-REPAIR NEEDLE CANNULA
Cannula No. 1 0.8mm/0.5mm
Cannula No. 2 0.9mm/0.6mm
Cannula No. 3 1.1mm/0.8mm
Outer casing in high-quality stainless steel, inner core in nickel-titanium; pre-bendable. There are windows on the side of the end of the cannula No. 1, and the end of the inner core is inclined (as shown). Corresponding to the three sizes of micro-trepan, it is assembled on the pressing handle for use, Select the appropriate cannula type according to the cross-sectional diameter of the separation device.
Cannula No. 2 0.9mm/0.6mm
Cannula No. 3 1.1mm/0.8mm
Outer casing in high-quality stainless steel, inner core in nickel-titanium; pre-bendable. There are windows on the side of the end of the cannula No. 1, and the end of the inner core is inclined (as shown). Corresponding to the three sizes of micro-trepan, it is assembled on the pressing handle for use, Select the appropriate cannula type according to the cross-sectional diameter of the separation device.
05 MICRO-RETRIEVE NEEDLE CANNULA
Cannula No. 1 0.8mm/0.5mm
Cannula No. 2 0.9mm/0.6mm
Cannula No. 3 1.1mm/0.8mm
Outer casing in high-quality stainless steel, inner core in nickel-titanium; pre-bendable. There are windows on the side of the end of the cannula No. 1, and the end of the inner core is inclined (as shown). Corresponding to the three sizes of micro-trepan, it is assembled on the pressing handle for use, Select the appropriate cannula type according to the cross-sectional diameter of the separation device.
Cannula No. 2 0.9mm/0.6mm
Cannula No. 3 1.1mm/0.8mm
Outer casing in high-quality stainless steel, inner core in nickel-titanium; pre-bendable. There are windows on the side of the end of the cannula No. 1, and the end of the inner core is inclined (as shown). Corresponding to the three sizes of micro-trepan, it is assembled on the pressing handle for use, Select the appropriate cannula type according to the cross-sectional diameter of the separation device.

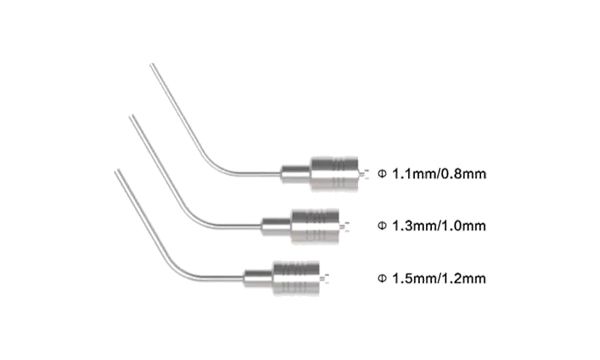

06 MICRO-RETRIEVE NEEDLE CANNULA
Cannula No. 1 1.1mm/0.8mm
Cannula No. 2 1.3mm/1.0mm
Cannula No. 3 1.5mm/1.2mm
The outer casing is made of high-quality stainless steel, and the inner core is made of nickel-titanium.There is no side window on the end of the cannula, and the end of the inner core is vertical to the plane. To be assembled on the pressing handle for the delivery of paste materials. The pre-bent delivery cannula and the inner core creates a direct-viewing operation under the microscope.
Cannula No. 2 1.3mm/1.0mm
Cannula No. 3 1.5mm/1.2mm
The outer casing is made of high-quality stainless steel, and the inner core is made of nickel-titanium.There is no side window on the end of the cannula, and the end of the inner core is vertical to the plane. To be assembled on the pressing handle for the delivery of paste materials. The pre-bent delivery cannula and the inner core creates a direct-viewing operation under the microscope.
